alusong brushed color coating aluminum composite panel

alusong brushed color coating aluminum composite panel

According to the trend towards natural materials the collection BRUSHED Look of ALUSONG aluminium panels provides a great alternative to real brushed surfaces. ALUSONG Brushed composite panel consisting of two coil-coated aluminium sheet around a polyethylene core. GKO pre-painted aluminium is easy to transform and allows to create original...
Share
  • colors
  • Product Ranges
  • Product properties
  • Applications
  • Technical Data
Colors & Surfaces

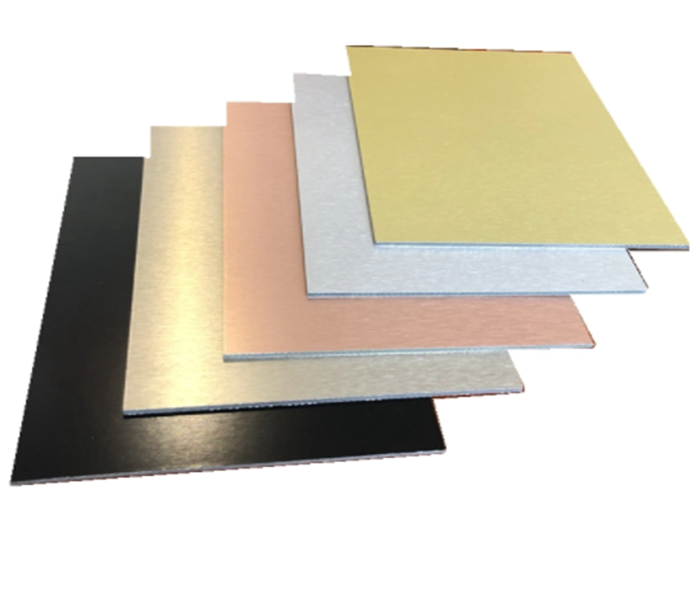

ALUSONG Brush aluminum composite panel is one of the special treatments used on the surface of the aluminum sheet.The surface aluminum skin is coating brush and anodized brush.The sheet can be finish in the color of silver and gold for your choice.The brushed finish range gives an alternative option to your facade cladding



Product Ranges


Aluminum alloyAA1100 series
Aluminum skin0.1mm,0.15mm,0.18mm,0.21mm,0.30mm,0.40mm,0.5mm
Panel thickness2mm,3mm,4mm,5mm,6mm
Panel width1220mm,1250mm,1500mm
Panel length2440mm,3050mm,4050mm
Surface treatmentANDONIZE BRUSHED
Glossy20%-50%


Dimensional tolerance:

Panel width: ±2mm        Panel length:±3mm

Panel thickness: ±0.2mm    Panel diagonal: ≤5mm

Aluminum sheet thickness: ±0.01mm




Product properties
alusong brushed color coating aluminum composite panel

High resistance to peeling

 Superior weather resistance

 Light weight and easy to process

 Coating evenness

 Easy for maintenance

 Impact resistance


APPLICATIONS

· Sign Making, Way finding

· Digital UV & Screen Printing

· Standoff Lettering

· Interior &exterior decoration

· Cladding&facade

· Modular Sign Systems

· Exhibition Design

· Outdoor Advertising



  • Application Application
  • Application Application
  • Application Application
  • Application Application
  • Application Application
Technical Data
DescriptionTest standardPolyester
Thickness of coatingPolyester paint >=16um16um to 18um
Coating flexibility (T-bend)Polyester paint≥3T3T
Color differentΔE≦2.0(follow color sample)ΔE≦2.0
Pencil hardness≧HB≧2H
Chemical resistance2%HCI or 2%NaOH test in 24 hours -No changeNo change
Coating adhesion≧1grade for 10810mm2gridding test1grade
Resist solvent100times with Dimethylebnzene without changeNo change
Boiling water resistance2 hours without changeNo change
Peeling strength/stripping strengthAverage ≧5N/mm of 180oc peel off for panel with 0.21mm alu.skin5N/mm
Impact test for paint20KG.cm impact-paint no split for panelNo split
Abrasion resistance (L/Mil)NILNIL
Temperature resistance-40℃ to +80℃ temperature without change of color difference and paint peel off,peeling strength average dropprate≦10%Change of glossy only,no paint Peel off
Cofficient of linear Thermal Expansion100℃ temperature difference2.4mm/n
Detergent resistance (3%)ASTM D2248No change
Humidity Resistance (3000hrs,100%RH,100°F)ASTM D2247No change
Salt spray resistance (3000hrs,5% salt)ASTM B117No change
Resistance to Staining600h radiate in 800W/M2 in humidity condition,glossiness deviation less grade 2,color difference ≦4.0No change
